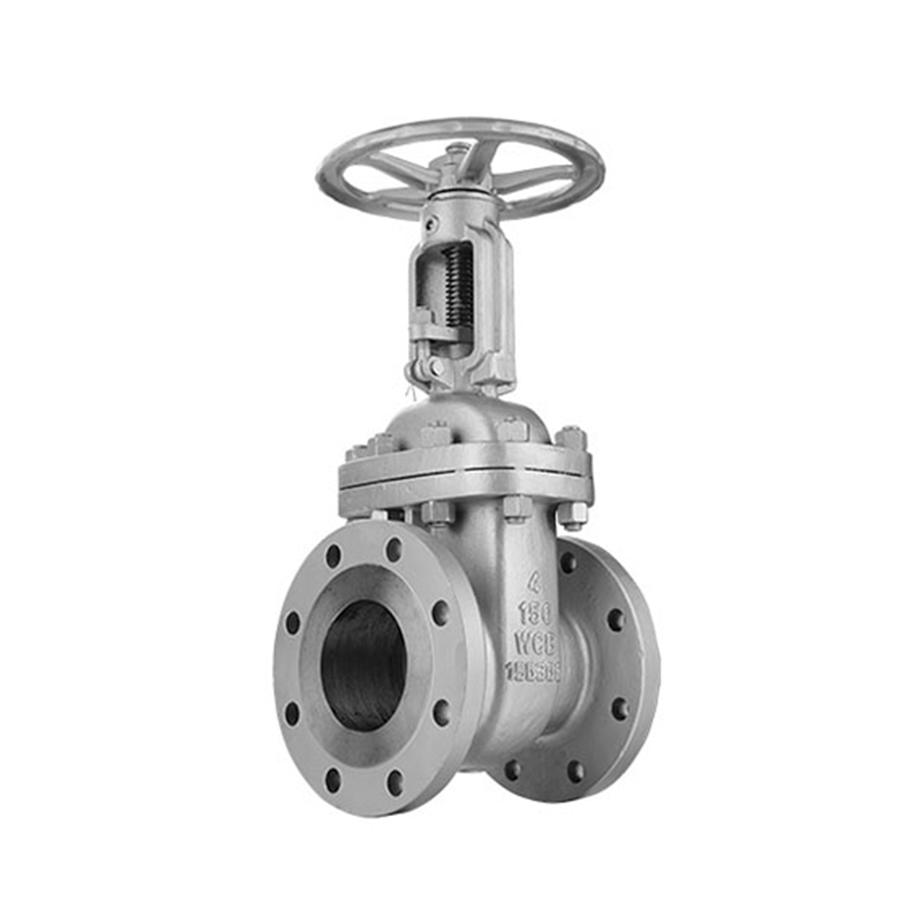

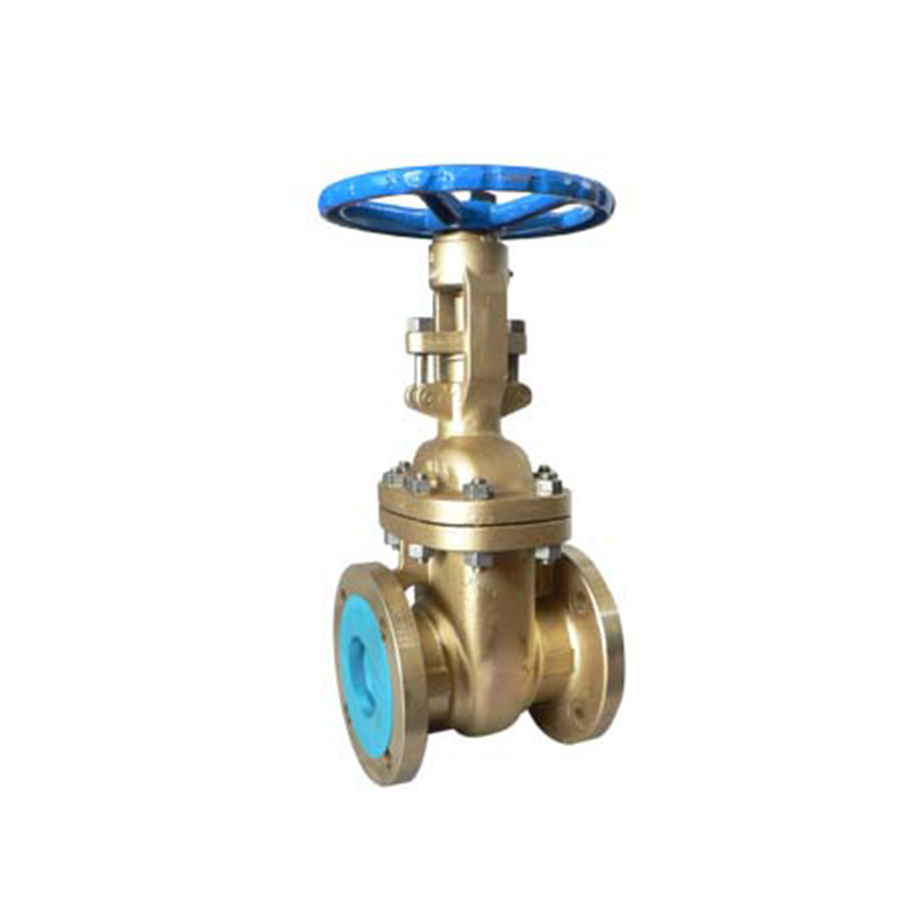

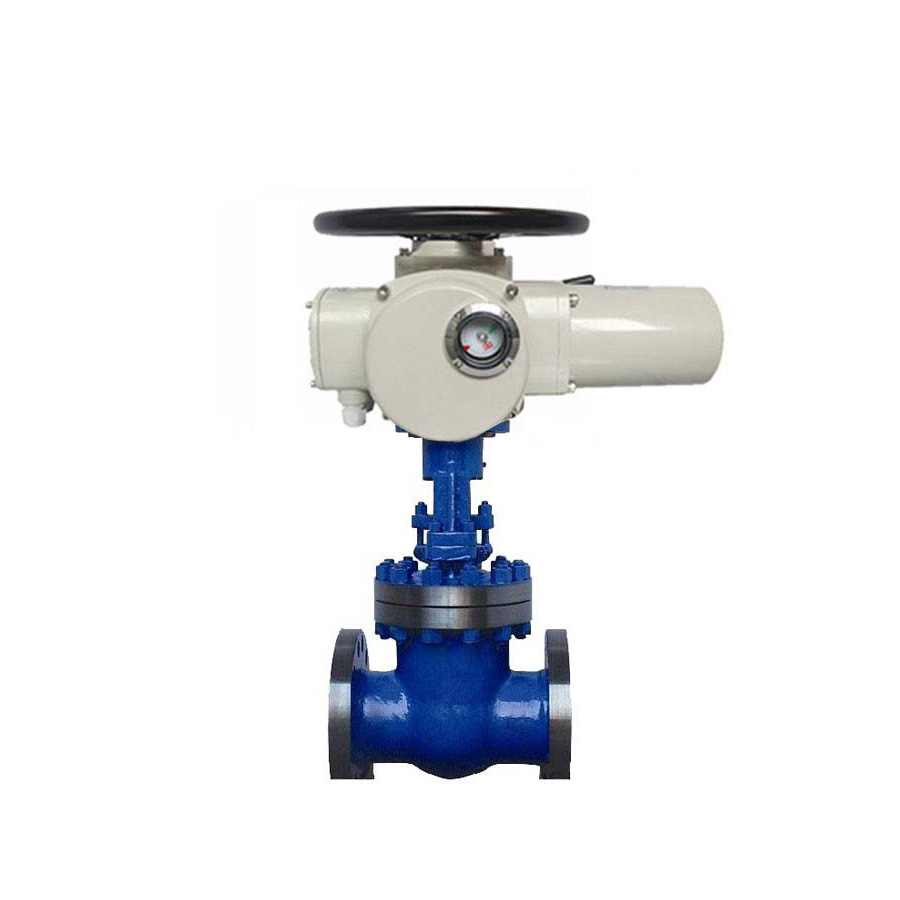

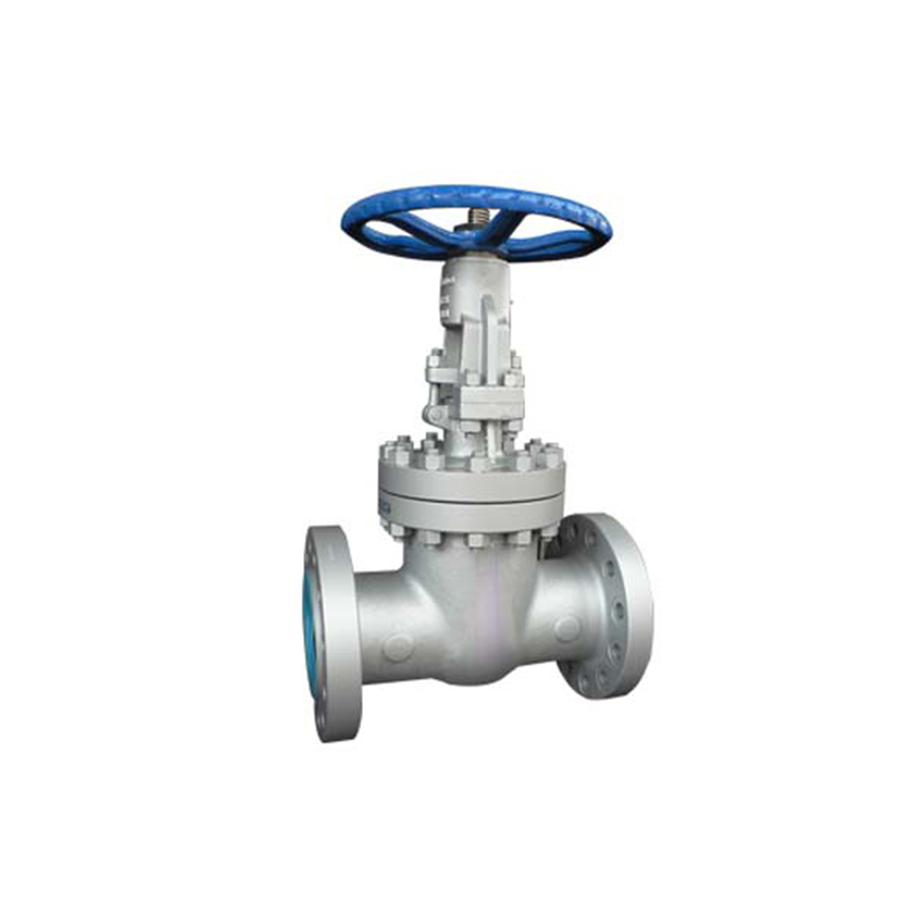

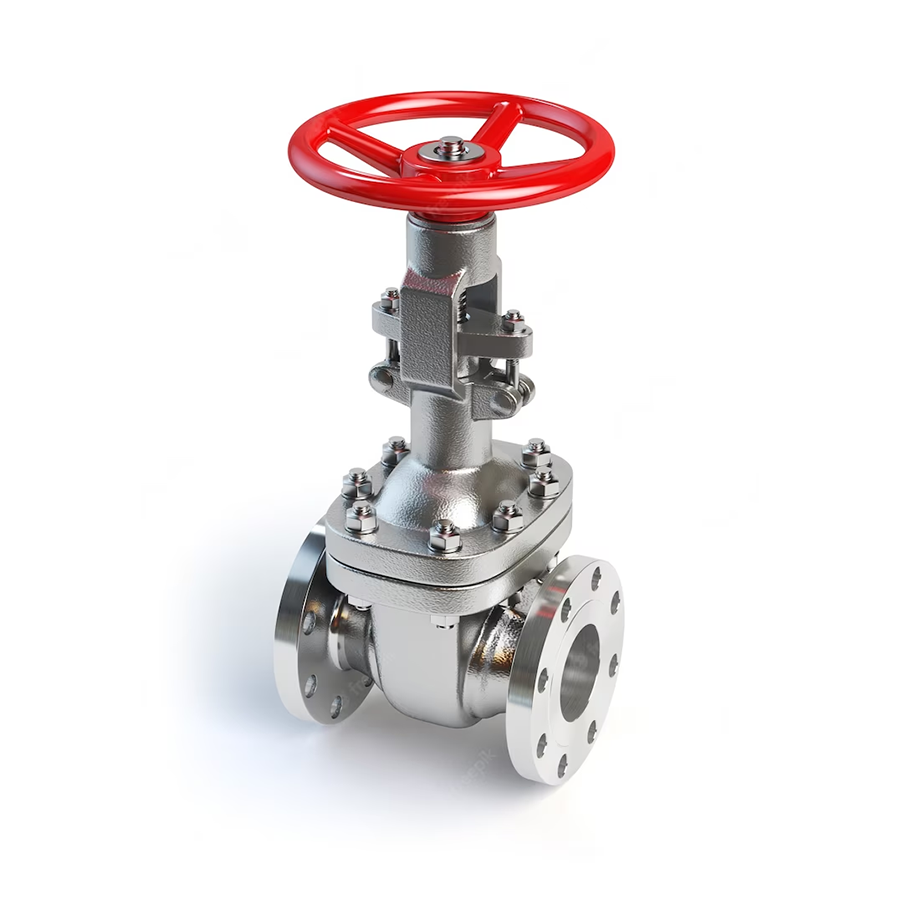

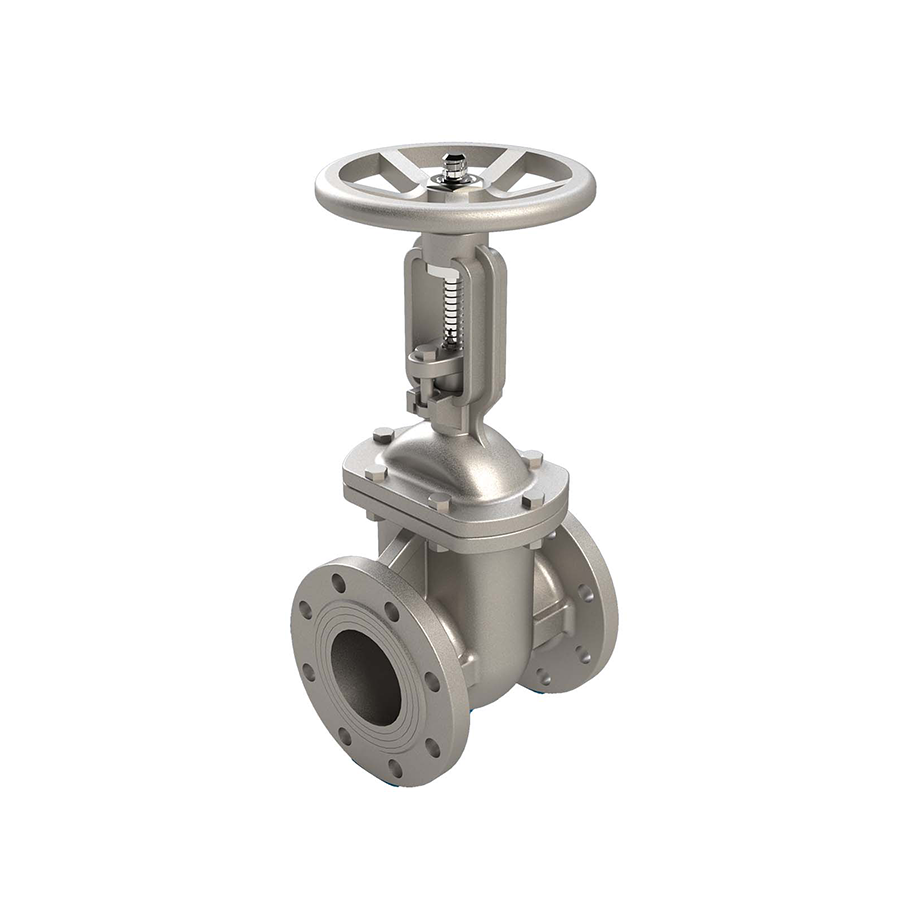

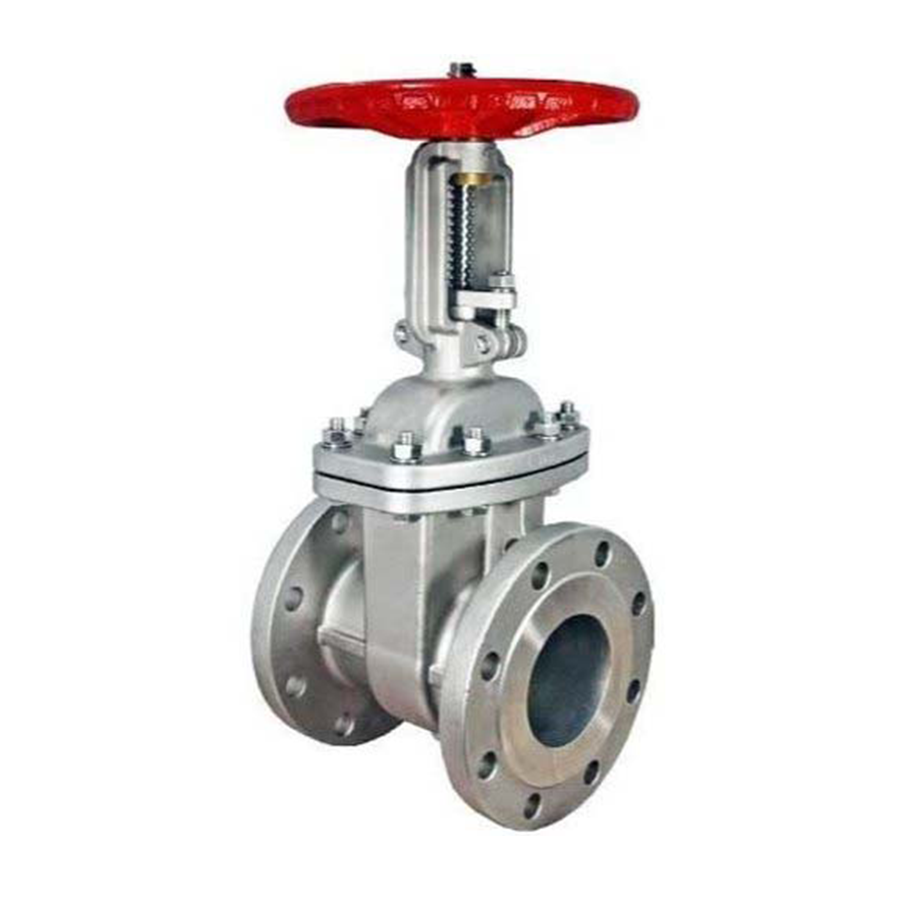

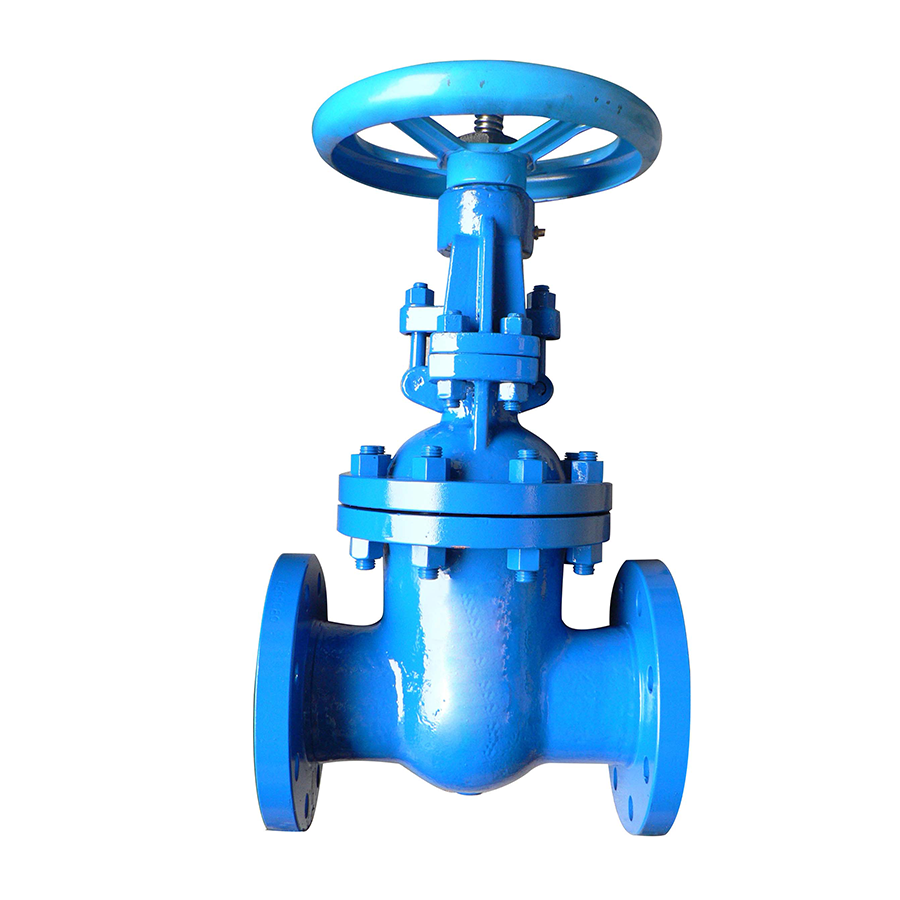

gate valve
| Size | 2” up to 60“ (DN 50 up to DN 1500) |
|---|---|
| Pressure rating | ASME 150 Class to 2500 Class / PN10–PN420 |
| Materials : | Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Low alloy steel , Nickel Alloys, Nickel Aluminium Bronze, Hastelloy, Inconel, Monel, Nickel, Titanium, Alloy & Carbon Steel with Internal Corrosion Resistant Alloy (CRA) Overlay |
Applicable standards
- Design& Manufacture: API 602 / API 600 / ASME B16.34 / DIN 3352
- Face to Face: ASME B16.10 / API 6D / EN 558.1 / DIN 3202
- Flange Ends: ASME B16.5 / ASME B14.47 / EN 1092-1
- Butt-weld Ends: ASME B16.25 / EN 12627
- Inspection and test: API 598 / EN 12266 / API 6D / API6FA / ISO 10497 / ISO 15848 – 1&2 / BS6364

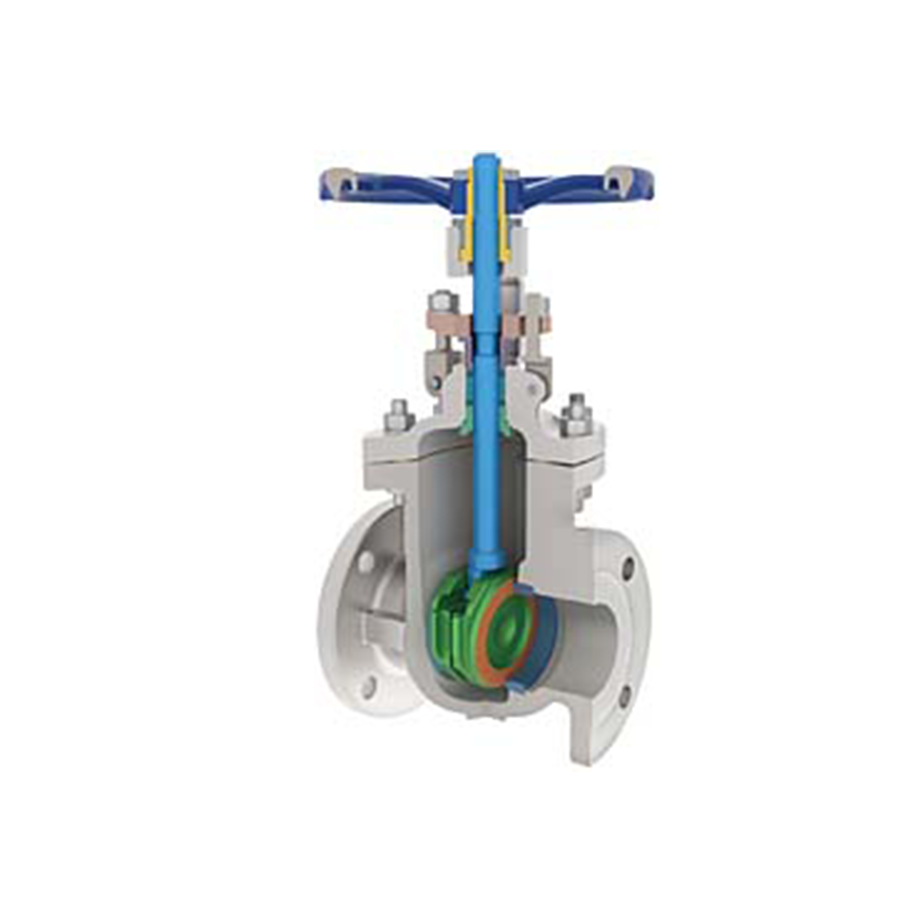

Design Descriptions
- Full port design
- Construction Details: Bolted Bonnet / Pressure Seal Bonnet, OS & Y Type Rising Stem
- End Connection: Flanged (RF, FF ,RTJ) , Hub End, BW(Buttwelding)
- Flexible Wedge, Solid wedge
Gate Valves are Available in Below Types
- Wedge type Bolted Bonnet
- Wedge type pressure seal bonnet
- Parallel Slide Bolted Bonnet
- Parallel Slide Pressure Seal Bonnet
- Conduit Bolted Bonnet Slab Gate
- Conduit Bolted Bonnet Expanding Gate
Cryogenic Service
- Gate Valves can be designed in a special version suitable for cryogenic service. In this case, all the materials and technical features are designed to withstand minimum design temperature required by the Customer, down to Cryogenic -196°C. If required by the customer, specific Cryogenic Tests are performed to verify the behaviour of production valves in terms of valve torque, sealing capability, emissions vs the ambient.
